VHDL Class Notes Unit2 - Part3 by Zainalabedin Navabi

PART 3

VHDL_Timing

Hardware modeling requirements
Objects and classes
Signals & variables
Concurrent & sequential assignments
Events, transactions, delta delays
Delay modeling
Sequential placement of transactions
Conventions & syntax

VHDL_Timing.hardware_modeling_requirements

Proper modeling requires simultaneous processing
Waveform shows node values

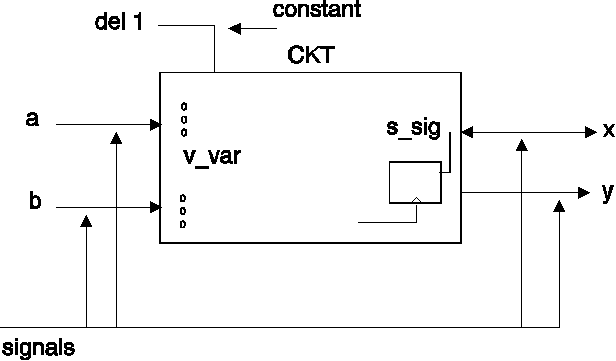

VHDL_Timing.objects_and_classes

Signals for hardware carriers
Variables as temporary carriers
Constants for fixed parameters
A signal is an object whose class is signal

VHDL_Timing.signals_and_variables

Signal assignments have a time component
x_sig <= value AFTER 6 NS;

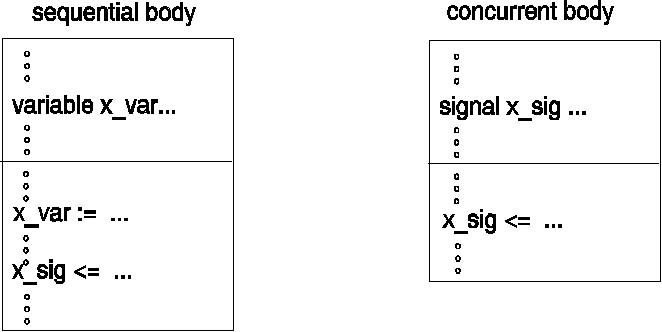

VHDL_Timing.concurrent/sequential_assignments

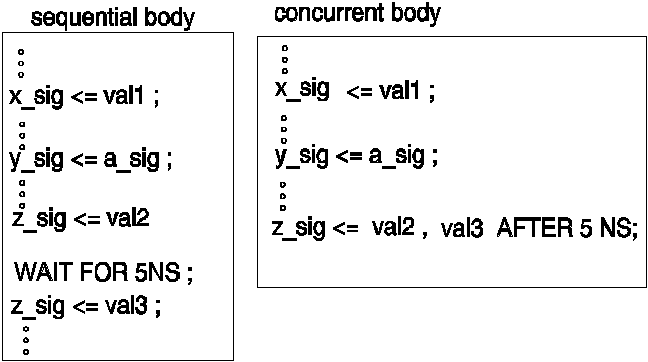

val2 and val3 are sequentially placed on z_sig
Assignment of a_sig to y_sig is done:
in the concurrent body, when event occurs on a_sig
in the sequential body, when program flow reaches it

VHDL_Timing.concurrent/sequential_assignments

ENTITY example IS

PORT (a, b, c : IN BIT ; z : OUT BIT);

END example;

ARCHITECTURE concurrent OF example IS

SIGNAL w, x, y : BIT;

BEGIN

w <= NOT a AFTER 12 NS;

x <= a AND b AFTER 12 NS;

y <= c AND w AFTER 12 NS;

z <= x OR y AFTER 12 NS;

END concurrent;

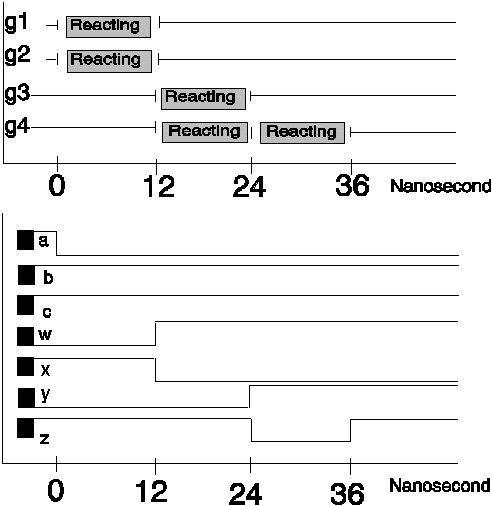

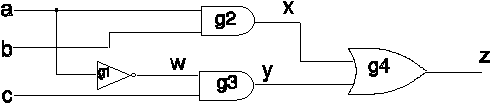

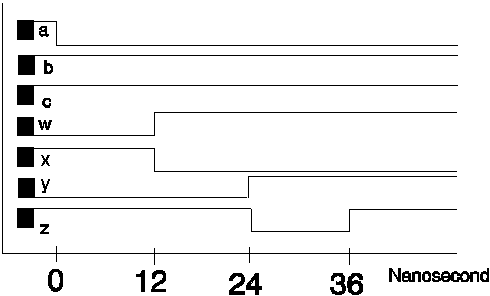

A concurrency example
Properly model gate level circuit by concurrency

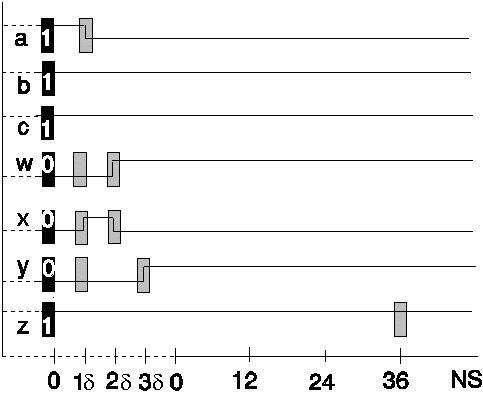

Assume a changes from '1' to '0' at time 0

VHDL_Timing.events, transactions, delta_delay

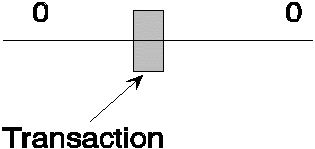

A signal assignment causes the placement of a transaction on the driver of the left hand side signal

Transaction Representation: (value , time)

A transaction has a value and a time component

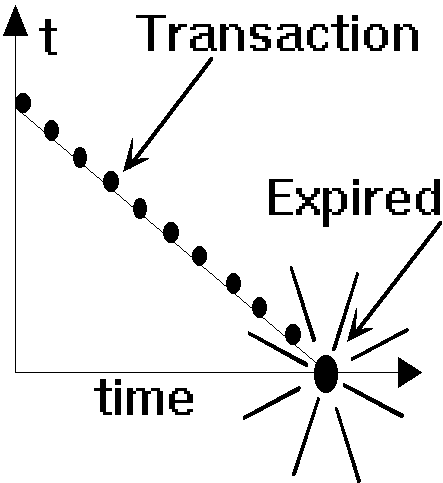

The time component of a transaction continuously decreases
Transaction is expired when its time component reaches 0
A signal receives value when a transaction on its driver expires

VHDL Timing.events, transactions, delta_delay

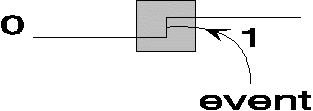

Assignment to a signal causes an EVENT on the signal if the signal changes value
An assignment creates a transaction on a signal if the value of the signal does not change

VHDL_Timing.events, transactions, delta_delays

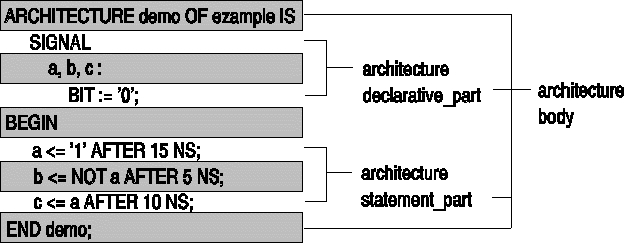

ARCHITECTURE demo OF example IS

SIGNAL a, b, c : BIT := '0';

BEGIN

a <= '1' AFTER 15 NS; b <= NOT a AFTER 5 NS; c <= a AFTER 10 NS;

END demo;

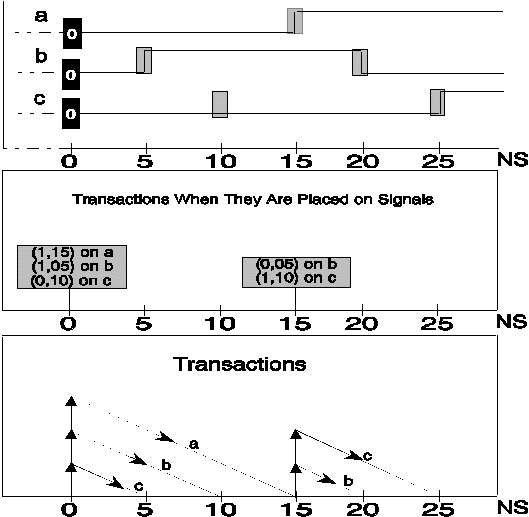

Example shows events and transactions
Concurrent assignment on a, b, and c

VHDL_Timing.events, transactions, delta_delays

A transaction with zero time expires a delta after it is placed on the driver on a signal

delta d

Delta is a simulation cycle , and not a real time
Delta is used for scheduling
A million deltas do not add to a femto second
Various forms of delta: Delta d d +1

VHDL_Timing.events, transactions, delta_delays

ARCHITECTURE not_properly_timed OF example IS

SIGNAL w, x, y : BIT := '0';

BEGIN

y <= c AND w;

w <= NOT a;

x <= a AND b;

z <= x OR y AFTER 36 NS;

END not_properly_timed;

A delta delay example

VHDL_Timing.events, transactions, delta_delays

ARCHITECTURE concurrent OF timing_demo IS

SIGNAL a, b, c : BIT := '0';

BEGIN

a <= '1';

b <= NOT a;

c <= NOT b;

END concurrent;

Another delta example

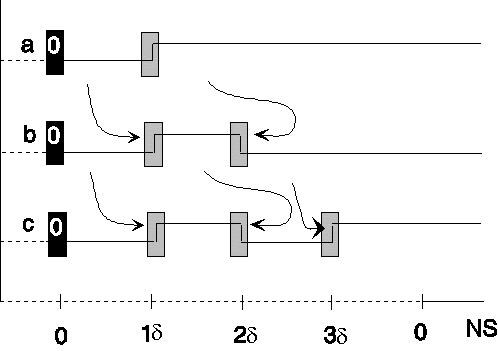

Zero real time is spent from change on a until c stabilizes

VHDL_Timing.events, transactions, delta_delays

x <= y

y <= NOT X

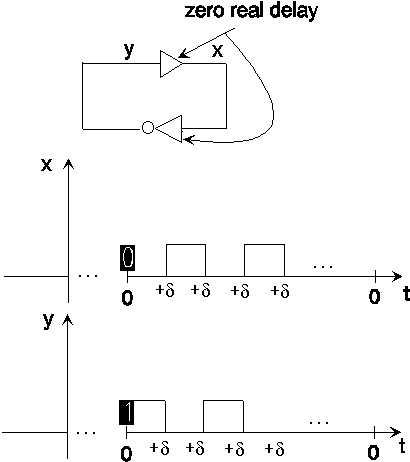

An interesting example
Assignments model zero delay inverter/buffer connection
Oscillation continues forever in zero real time

VHDL_Timing.delay_modeling

ARCHITECTURE delay OF example IS

SIGNAL target1, target2, waveform : BIT;

-- this is a comment

BEGIN

-- the following illustrates inertial delay

target1 <= waveform AFTER 5 NS;

-- the following illustrates transport delay

target2 <= TRANSPORT waveform AFTER 5 NS;

END delay;

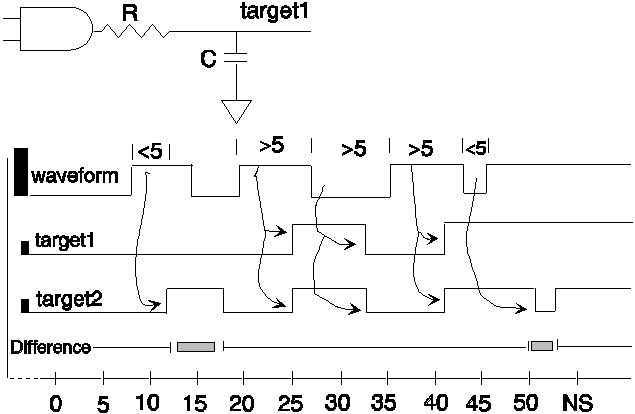

Inertial delay model represents hardware inertial delay
Transport delay model is used ingeneration waveforms

VHDL_Timing.sequential_placement_of_transactions

t1 < t2 < t3

Sequential placement of transactions justifies delay model

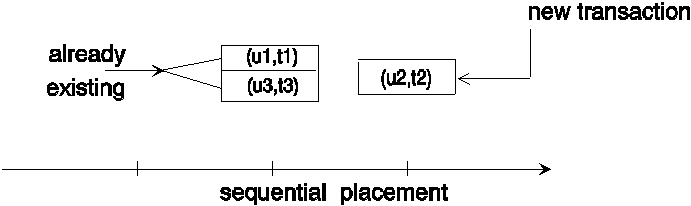

New transaction AFTER (u1, t1)
New transaction BEFORE (u3, t3)
Can use process to place transactions sequentially

VHDL_Timing.sequential_placement_of_transactions

EXAMPLES for:

Inertial / Before

Inertial / After / Different values

Inertial / After / Same values

Transport / Before

Transport / After

Assume x takes '0', '1', and 'Z' values

ARCHITECTURE sequential OF overwriting_old IS
SIGNAL x : tit := 'Z';
BEGIN
PROCESS BEGIN
x <= '1' AFTER 5 NS; x <= '0' AFTER 3 NS;
WAIT;
END PROCESS;
END sequential;

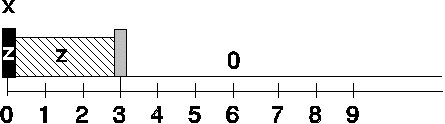

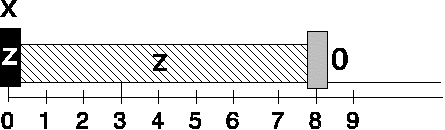

Inertial, new transaction BEFORE already existing
Overwrites already existing

VHDL_Timing.sequential_placement_of_transactions

ARCHITECTURE sequential OF discarding_old IS
SIGNAL x : tit := 'Z';
BEGIN
PROCESS BEGIN
x <= '1' AFTER 5 NS; x <= '0' AFTER 8 NS;
WAIT;
END PROCESS;
END sequential;

ARCHITECTURE sequential OF saving_all IS

SIGNAL x : tit := 'Z';

BEGIN

PROCESS BEGIN

x <= '0' AFTER 5 NS; x <= '0' AFTER 8 NS;

WAIT;

END PROCESS;

END sequential;

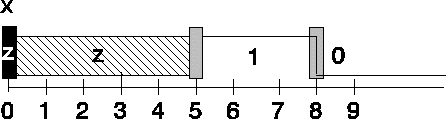

Inertial, new transaction AFTER existing, different values
Inertial, new transaction AFTER existing, same values

VHDL_Timing.sequential_placement_of_transactions

ARCHITECTURE sequential OF discarding_old IS

SIGNAL x : tit := 'Z';

BEGIN

PROCESS BEGIN

x <= TRANSPORT '1' AFTER 5 NS; x <= TRANSPORT '0' AFTER 8 NS;

WAIT;

END PROCESS;

END sequential;

ARCHITECTURE sequential OF saving_all IS

SIGNAL x : tit := 'Z';

BEGIN

PROCESS BEGIN

x <= TRANSPORT '1' AFTER 5 NS; x <= TRANSPORT '0' AFTER 8 NS;

WAIT;

END PROCESS;

END sequential;

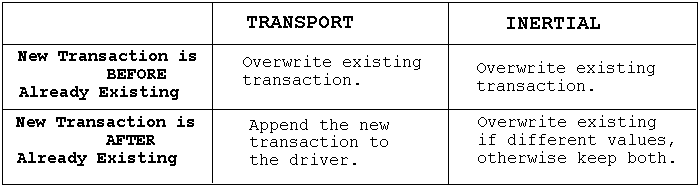

Transport, new transaction BEFORE already existing
Transport, new transaction AFTER already existing

VHDL_Timing.sequential_placement_of_transactions

ARCHITECTURE glitch OF inertial_transport_demo IS

SIGNAL i_target, t_target, a_glitch : BIT := '0';

BEGIN

a_glitch <= '1' AFTER 10 NS, '0' AFTER 12 NS;

i_target <= a_glitch AFTER 5 NS;

t_target <= TRANSPORT a_glitch AFTER 5 NS;

END glitch;

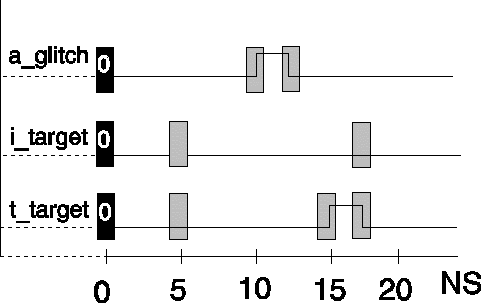

Sequential placement of transactions causes removal of short glitches in the inertial delay

VHDL_Timing.convetions & syntax

Syntax details show language constructs
Use -- (two dashes) for comments
Use upper case for keywords & predifined words

VHDL_Timing.conclusion
